Click any diagram to open and
print it.

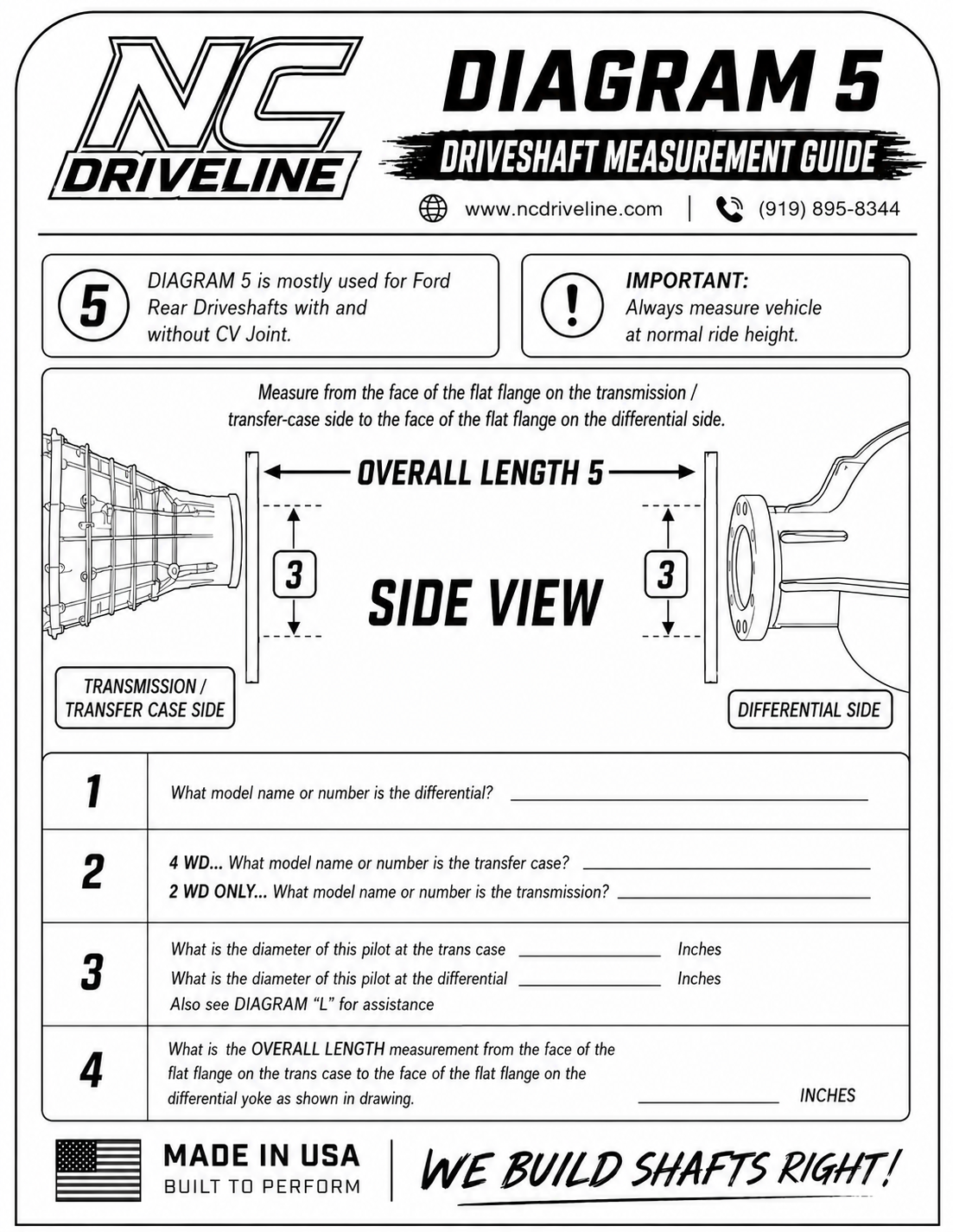

• Bronco II owners: See Diagram 5 for the upgraded version.

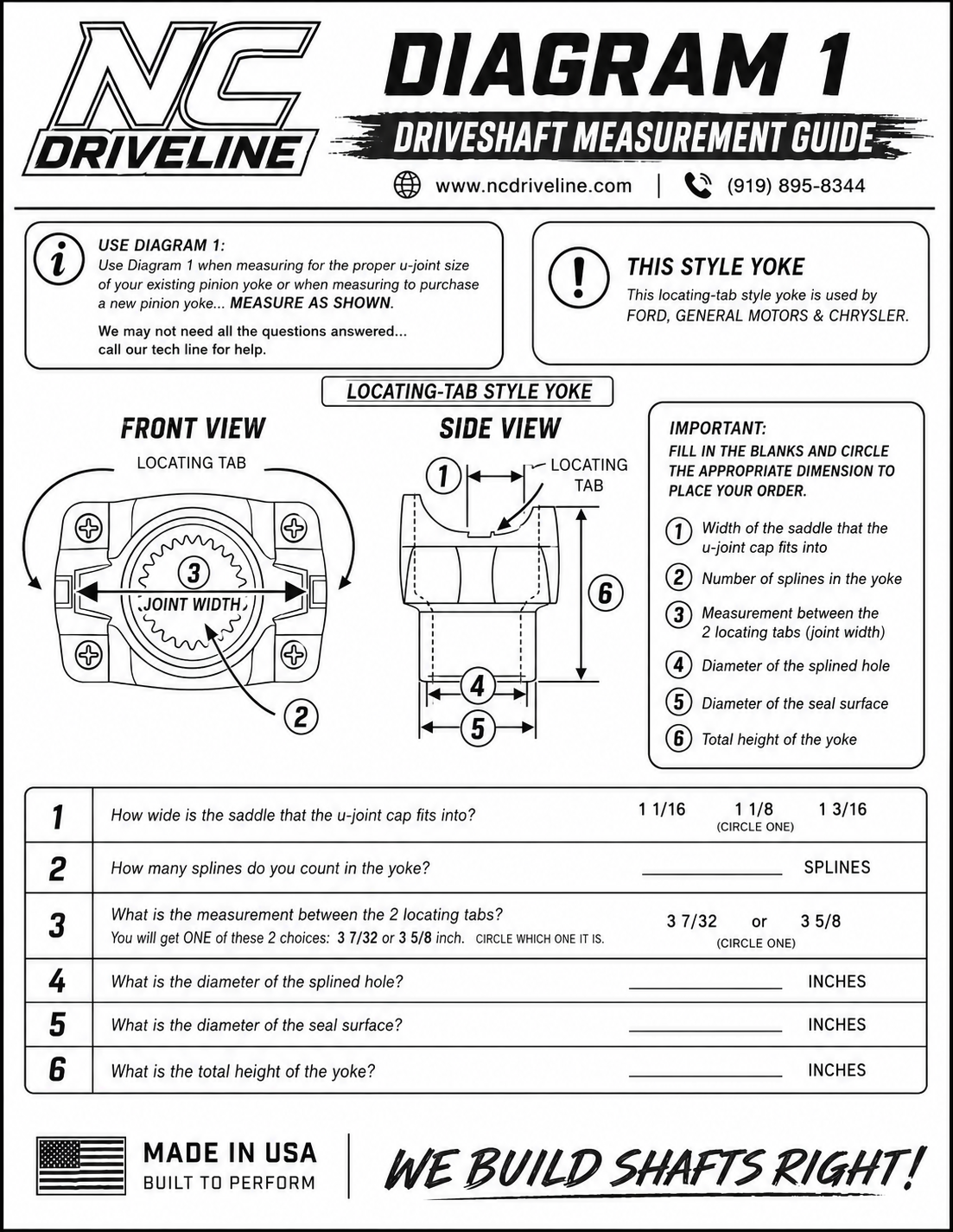

• Rear U-joint checks: Diagram 1 or 2
• Ford applications: Diagram 6

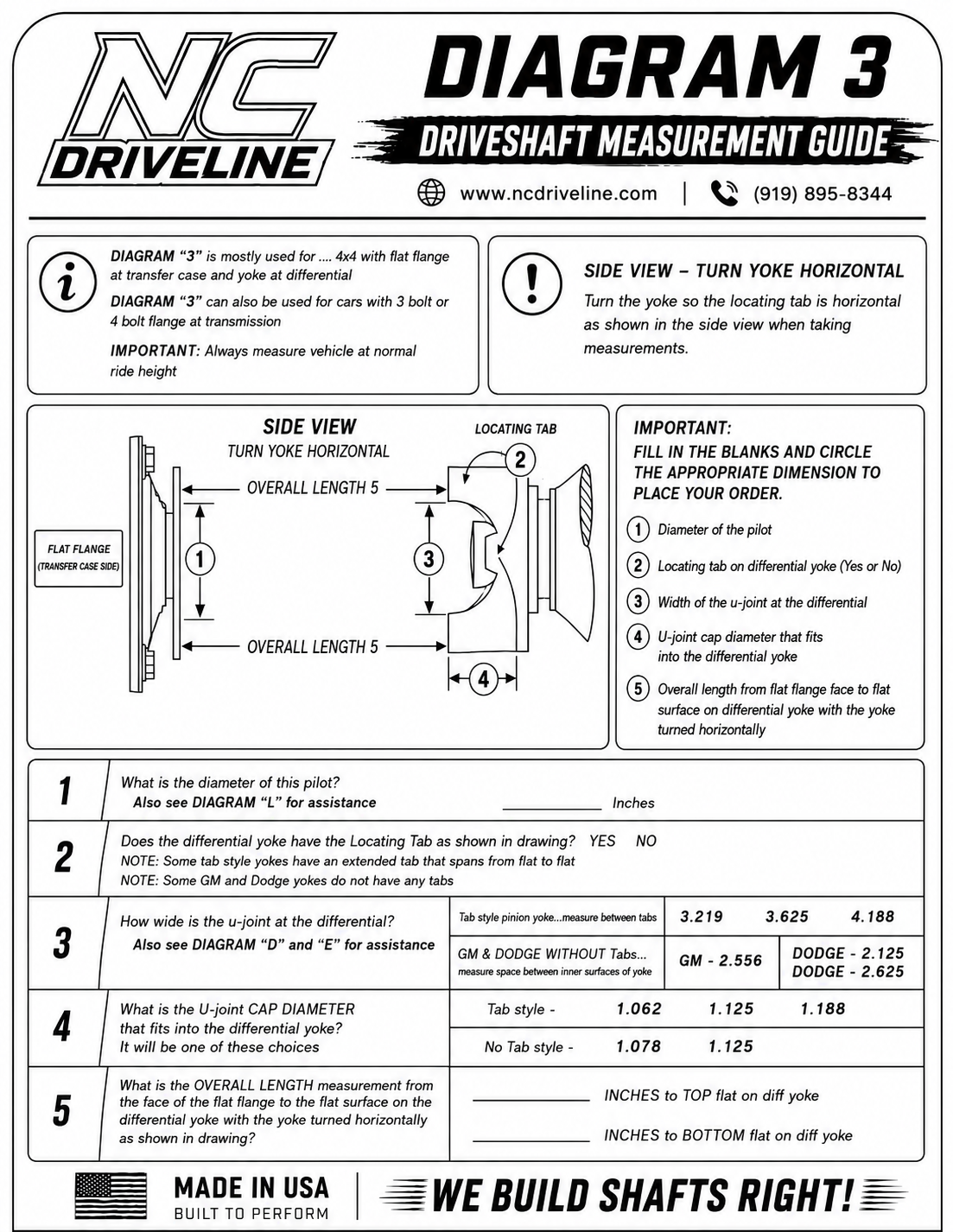

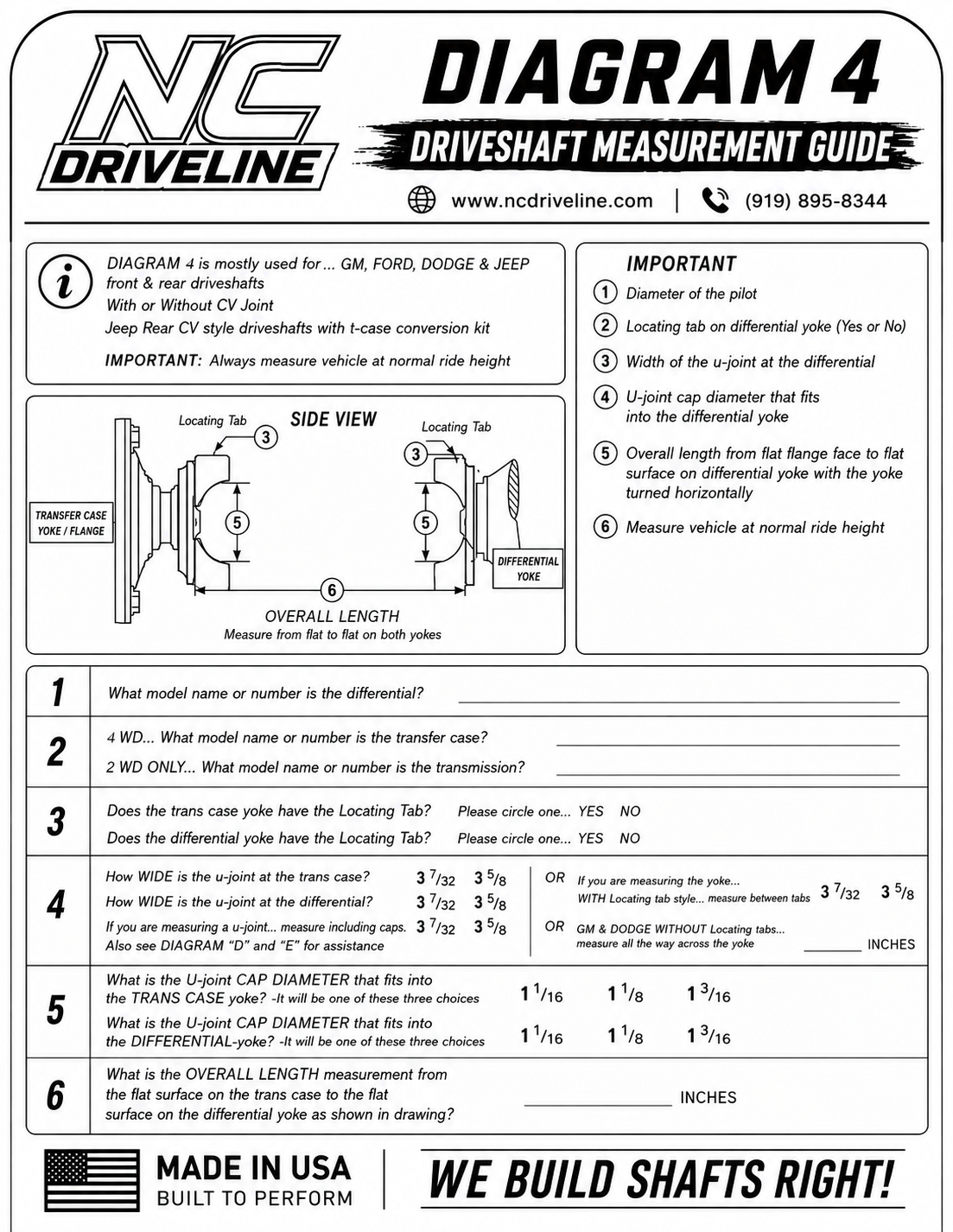

• 4×4 setups: Rear shafts often use 4 or 6. Front shafts usually use 3 or 4.

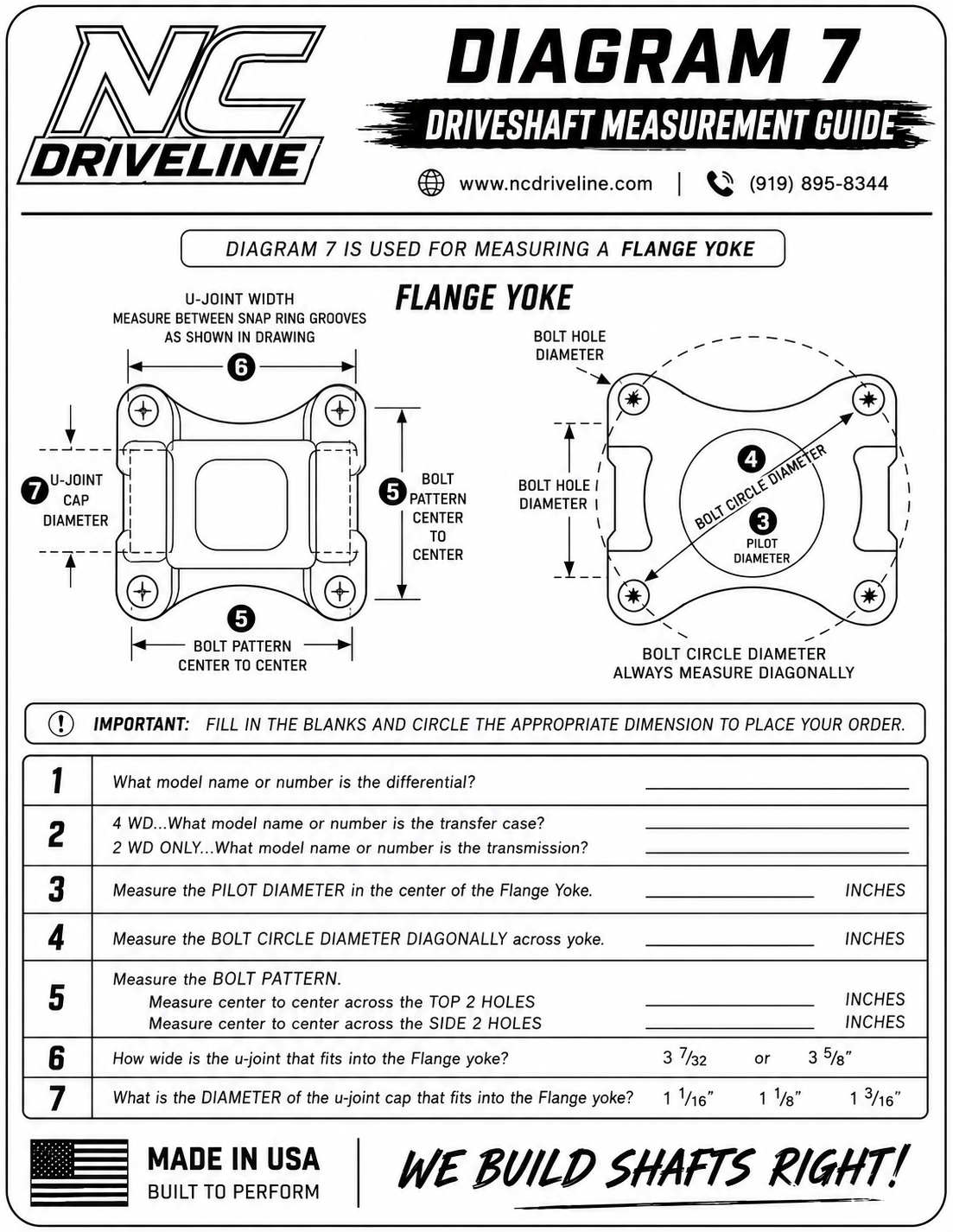

• Measuring a Flange Yoke: Diagram 7
